精度等級Accuracy class

1%F.S.

額定輸出Rated output

0.8-1.5mV/V

零點輸出Zero balance

±0.1 mV/V

非線性Non-linearity

±1%F.S.

滯后Hysteresis

±1%F.S.

重復性Repeatability

±1%F.S.

蠕變(30分鐘)Creep(30min)

±1%F.S.

溫度靈敏度漂移Temp.effect on output

±1%F.S./10°C

零點溫度漂移Temp.effect on zero

±1%F.S./10°C

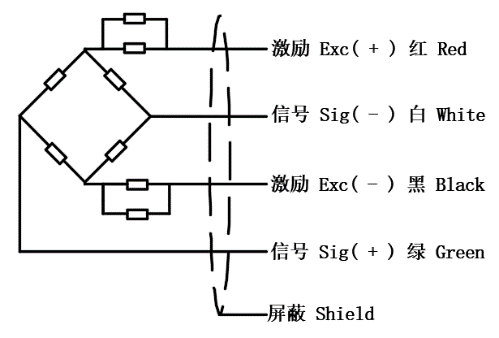

輸入電阻Input impedance

350±20Ω

輸出電阻Output impedance

350±5Ω

絕緣電阻Insulation

≥5000MΩ(50VDC)

使用電壓Recommended excitation

2.5~5VDC

最大使用電壓Maximum excitation

10VDC

溫度補償范圍Compensated temp. range

-10~40°C

工作溫度范圍Operation temp. range

-20~60°C

安全過載Safe overload

150%F.S.

極限過載Ultimate overload

200%F.S.

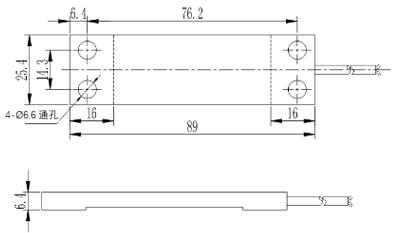

電纜線尺寸Cable size

Φ3x3m

防護等級Portection class

IP65
