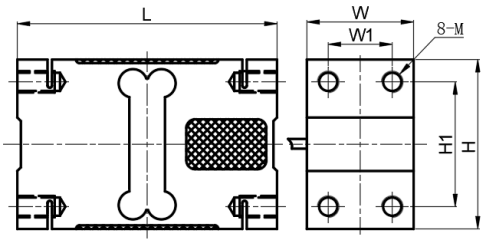

| 量程 Capacit | H | H1 | L | W | W1 | M |
| 50-200 | 75 | 50 | 156 | 44 | 24 | M12X1.75 |
| 250-500 | 95 | 70 | 146 | 60 | 36 | M12X1.75 |
750-1000 | 125 | 95 | 176 | 76 | 46 | M16X2 |
量程Capacity | 50-1000kg |
| 精度等級Accuracy class | 0.03%F.S. |
| 額定輸出Rated output | 2.0±0.2mV/V |
| 零點輸出Zero balance | ±2%F.S. |
| 非線性Non-linearity | ±0.03%F.S. |
| 滯后Hysteresis | ±0.03%F.S. |
| 重復性Repeatability | ±0.03%F.S. |
| 蠕變(30分鐘)Creep(30min) | ±0.03%F.S. |
| 溫度靈敏度漂移Temp.effect on output | ±0.03%F.S./10°C |
| 零點溫度漂移Temp.effect on zero | ±0.03%F.S./10°C |
| 輸入電阻Input impedance | 406±10Ω |
| 輸出電阻Output impedance | 350±5Ω |
| 絕緣電阻Insulation | ≥5000MΩ(50VDC) |
| 使用電壓Recommended excitation | 5~10VDC |
| 最大使用電壓Maximum excitation | 15VDC |
| 溫度補償范圍Compensated temp. range | -10~40°C |
| 工作溫度范圍Operation temp. range | -20~60°C |
| 安全過載Safe overload | 120%F.S. |
| 極限過載Ultimate overload | 150%F.S. |
| 電纜線尺寸Cable size | Φ5.6x3m |
推薦秤盤尺寸Recommend platform size | 600x600mm/1200x1200mm |
| 防護等級Portection class | IP65 |
